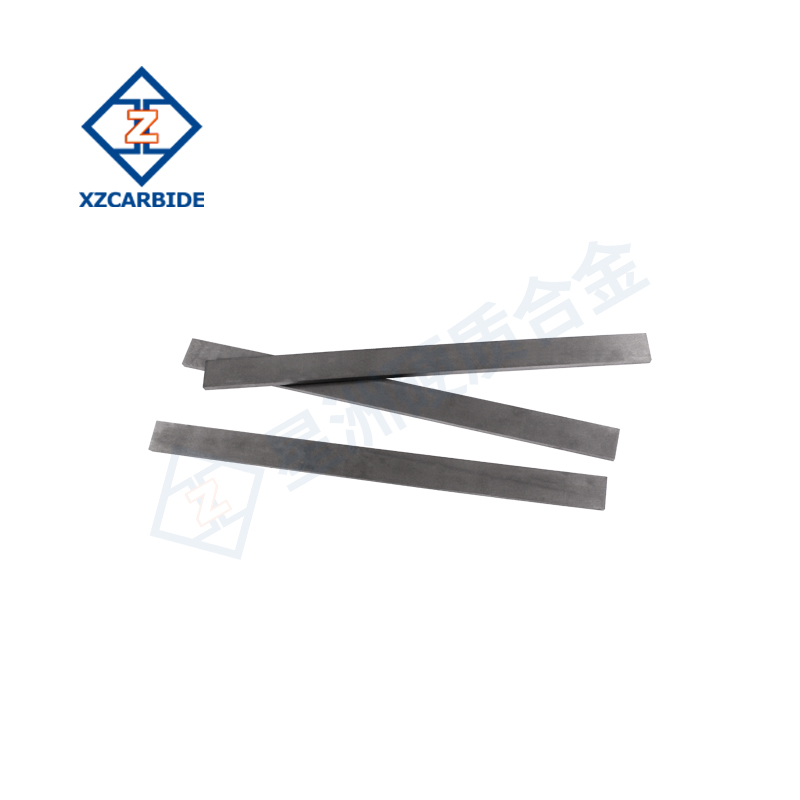

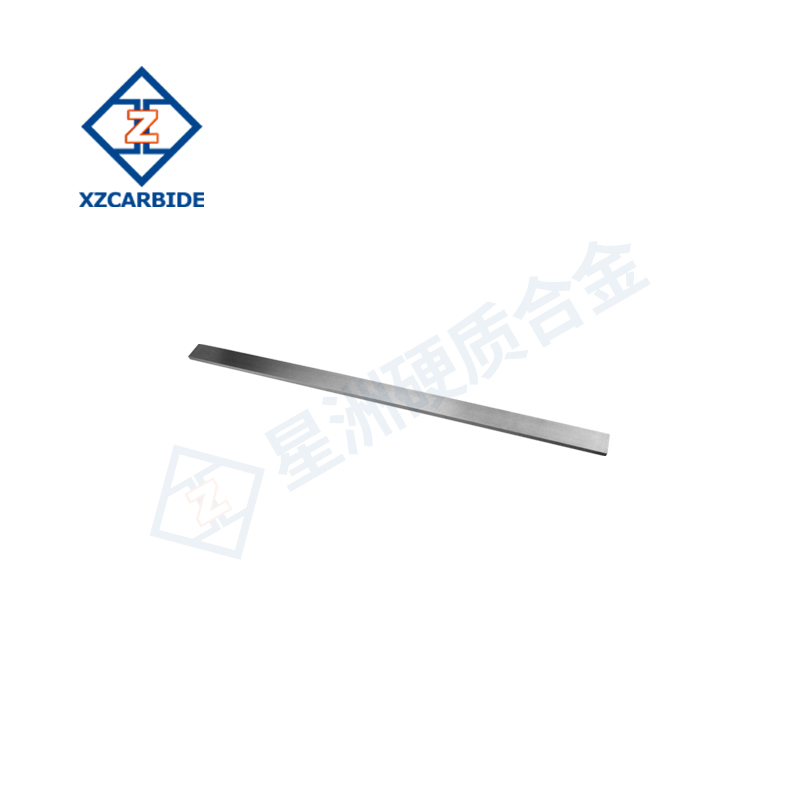

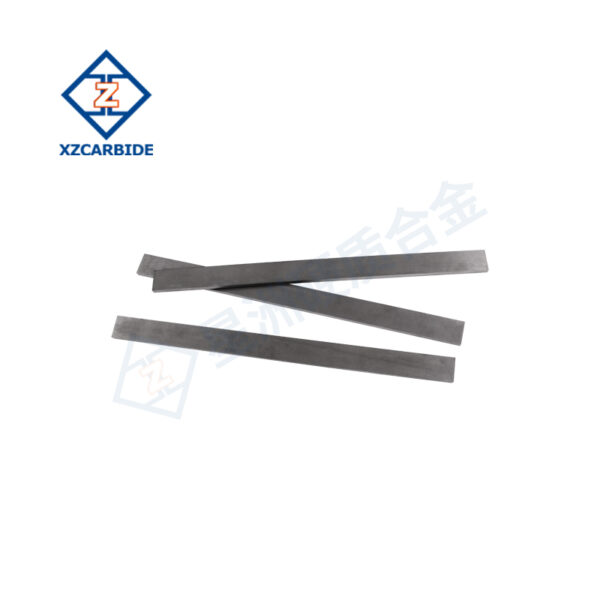

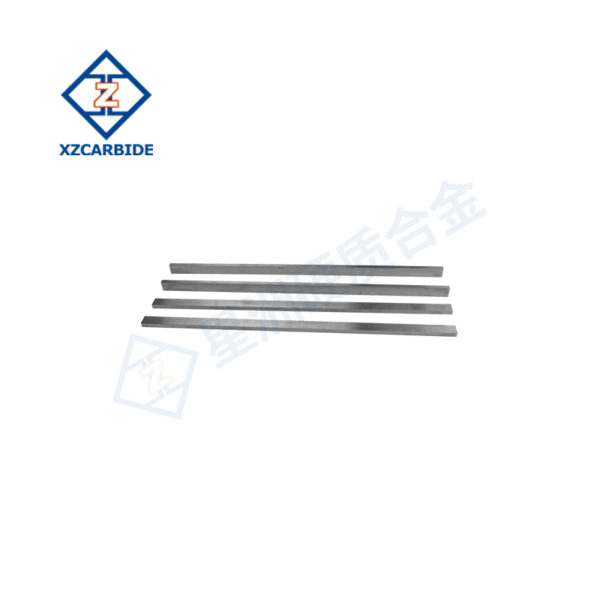

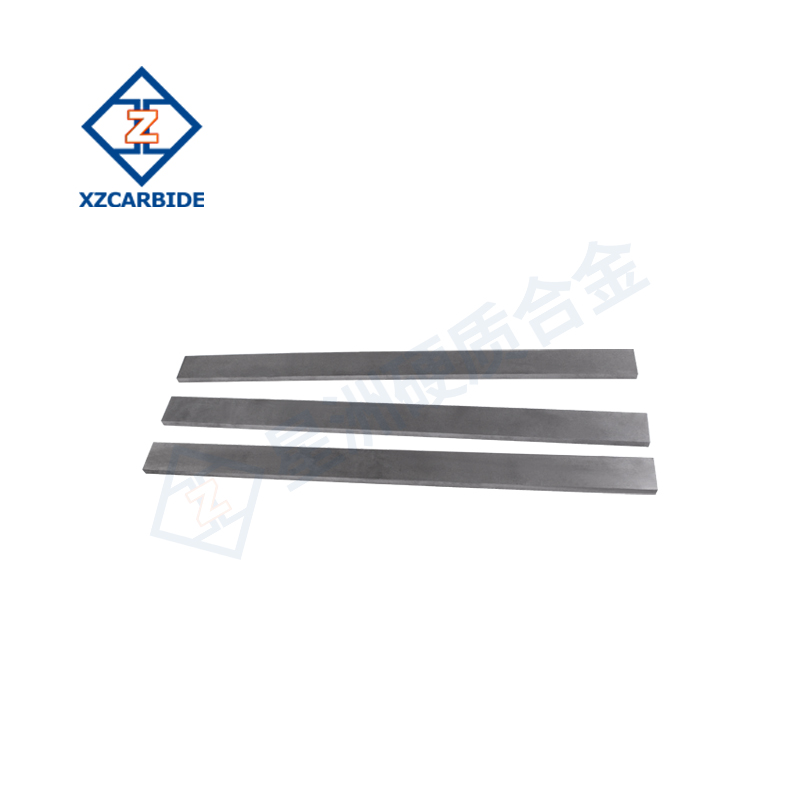

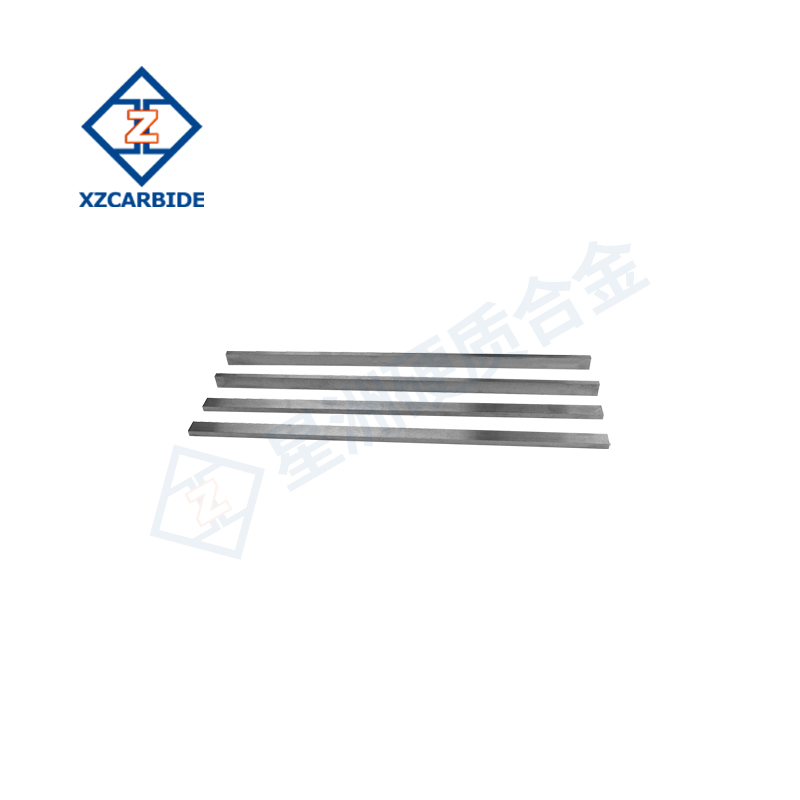

Specifications of Cemented Carbide Strips
Dimensions (T*WxL, mm) | Thickness Tolerance (mm) | Width Tolerance (mm) | Length Tolerance (mm) |
1x(2~5)x length | Thickness = 7.0 Tolerance: +0.2/+ 0.5;Thickness > 7 Tolerance: +0.2/+0.7 |
Width = 30 Tolerance: + 0.2/+0.6Width > 30 Tolerance: +0.2/+0.8 |
Length < 100 Tolerance: 0/+ 1.0;100 ≤ Length < 200 Tolerance: 0/+2.0;Length = 200 Tolerance: 0/+5.0 |
1.5x(2~10)xlength | |||
2.0x(3.5~15)xlength | |||
2.5x(2.5~20)x length | |||
3.0x(3.0~20)xlength | |||
3.5x(3.5~25)xlength | |||
4.0x(4.030)xLength | |||
5.0x(4.0~40)xlength | |||
6.0x(5.0~40)xlength | |||
(7~20) x(7~40) x length |
Product Features
- Extremely high hardness, able to resist strong abrasion and cutting forces, ensuring that the tools remain sharp under prolonged use.
- Good strength and toughness, can withstand large impact and bending force without breaking.
- Excellent resistance to a wide range of chemicals, not easy to be corroded or oxidized.
- Stable performance under high temperature environment, it is not easy to be deformed or fail.
- Available to customize tungsten carbide bars of different sizes, shapes and specifications according to customers’ needs.
Application Areas
- Cutting tools: Used in the manufacture of drills, milling cutters, planer cutters and other cutting tools.
- Mould manufacturing: Used to make wear-resistant parts for cold punching molds, injection molds and other molds.
- Wear-resistant parts: Used for manufacturing wear-resistant parts of various machines.
