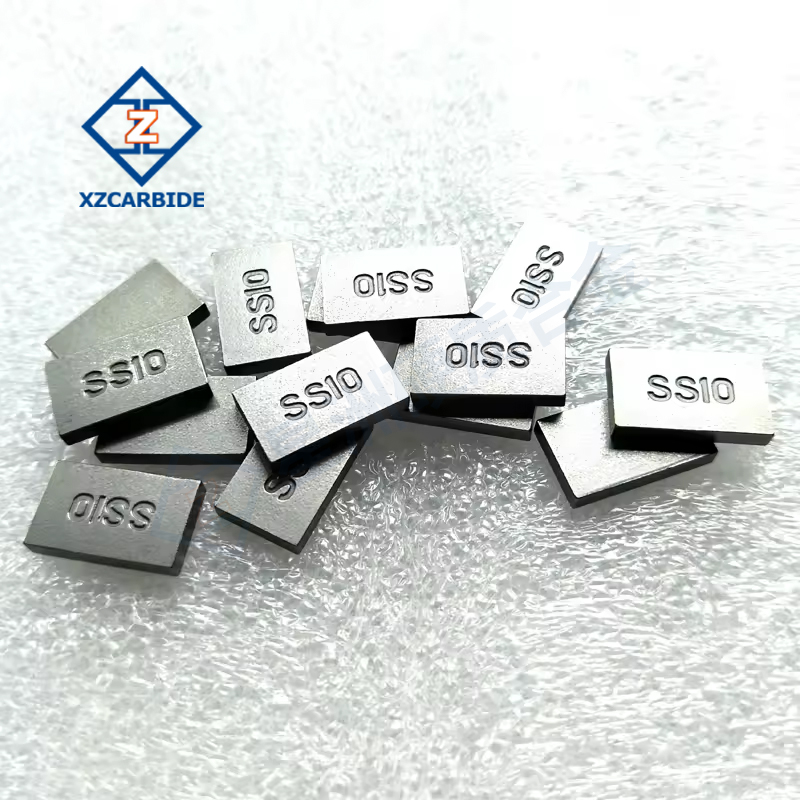

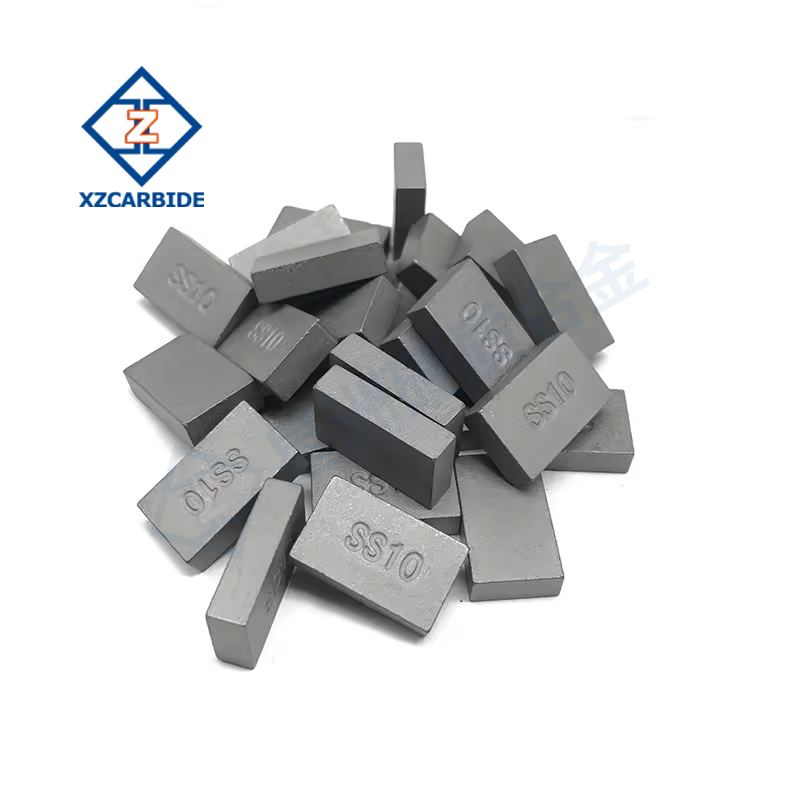

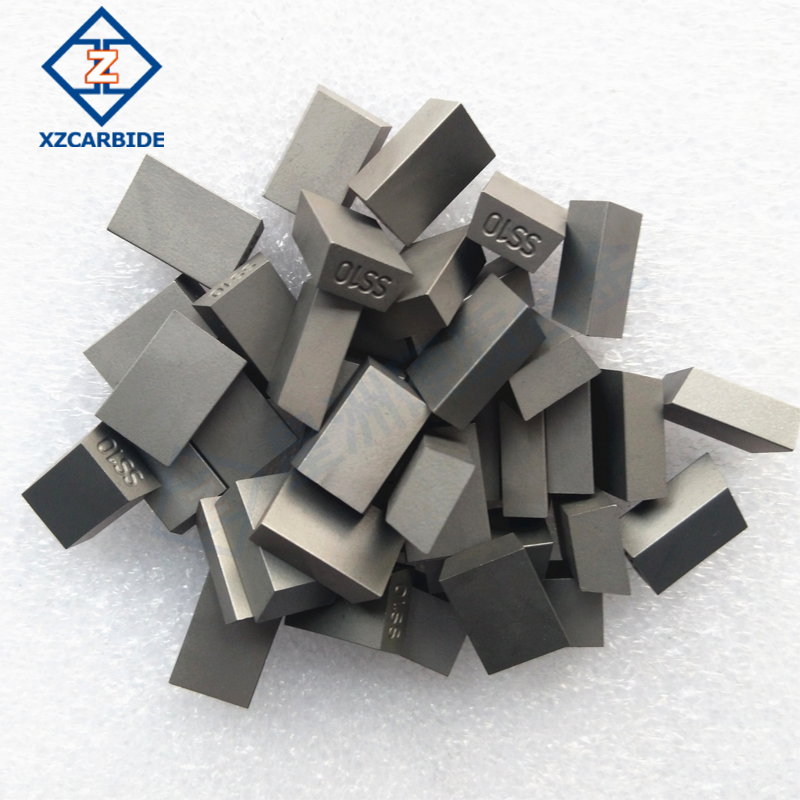

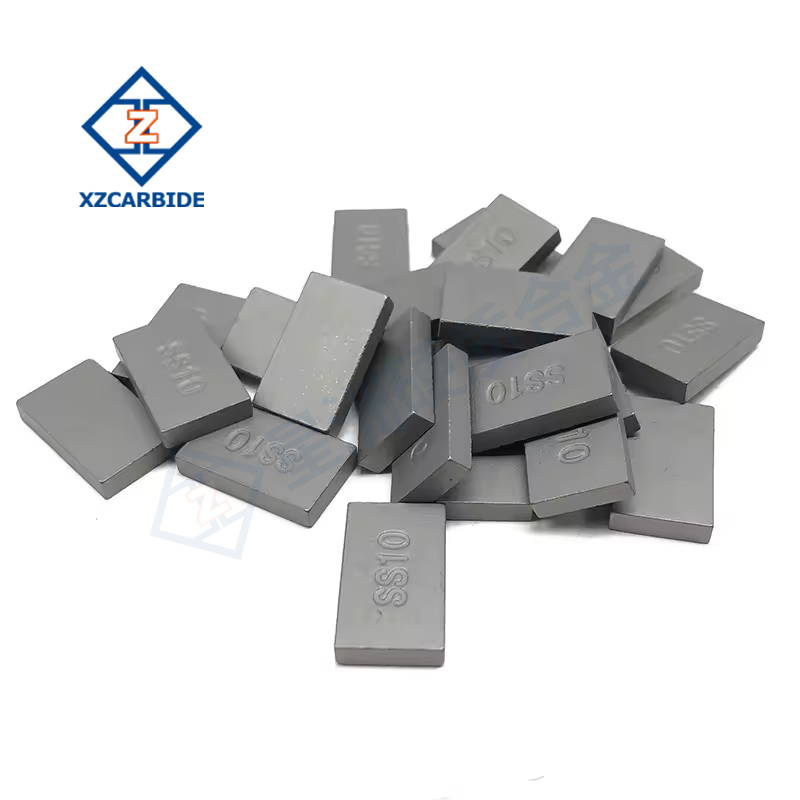

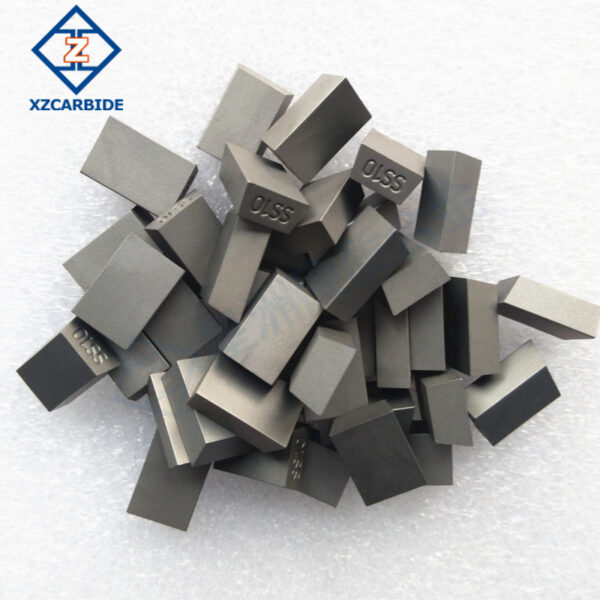

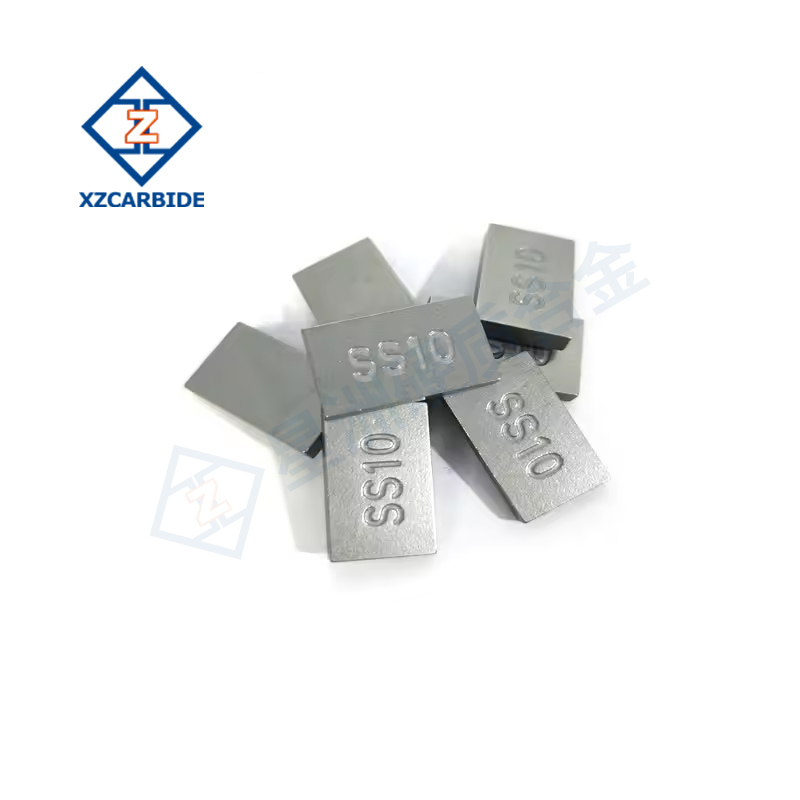

Carbide Brazed Tips

A cutting tool component made of high-quality cemented carbide, widely used for machining diverse materials due to its excellent wear resistance, high hardness and stable high-temperature performance.

Basic Information

Material

100% raw cemented carbide

Grade

Multiple grades available on request

Specification

Length*Width*Thickness, exact specifications are strictly followed by drawings

Main Features and Advantages

  • Excellent hardness and wear resistance: Tungsten carbide material ensures the long-term use of brazed tips under high load and high speed cutting conditions.
  • Stable high-temperature performance: The ability to maintain stable cutting performance in high-temperature environments extends tool life and improves productivity.
  • Precise geometry and dimensions: High-precision manufacturing process ensures that each brazed tip has consistent geometry and dimensions, ensuring accuracy and stability of work-piece machining.
  • Customization options: Based on customer-specific requirements, brazed tips can be customized with different shapes, sizes and cutting characteristics to meet the needs of different machining tasks.

Applications

Widely used in the machining of metal, wood, stone and construction materials.

Common Used Grade

Grade

ISO

Code

Density

g/cm3

Hardness

HRA

T.R.S

MPa

Applications Recommended

YG3

K05 15.10 92.0

1400

Suitable for finishing of cast iron and nonferrous metal.

YG6X

K10 14.95 91.5

1800

The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.

YG6

K15 14.95 90.5

1900

Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

YG8

K20 14.80 89.5

2200

YW1

M10 13.10 91.6

1600

Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel.

YW2

M20 13.00 90.6

1800

The grade can be used for the semi- finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.

YT15

P10 11.4 91.5

1600

Suitable for the finishing and semi- finishing for steel and cast steel with a moderate feed rate and rather high cutting speed.

YT14

P20 11.6 90.8

1700

Suitable for the finishing and semi-finishing of steel and cast steel.

YT5

P30 12.9 90.5

2200

Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.
