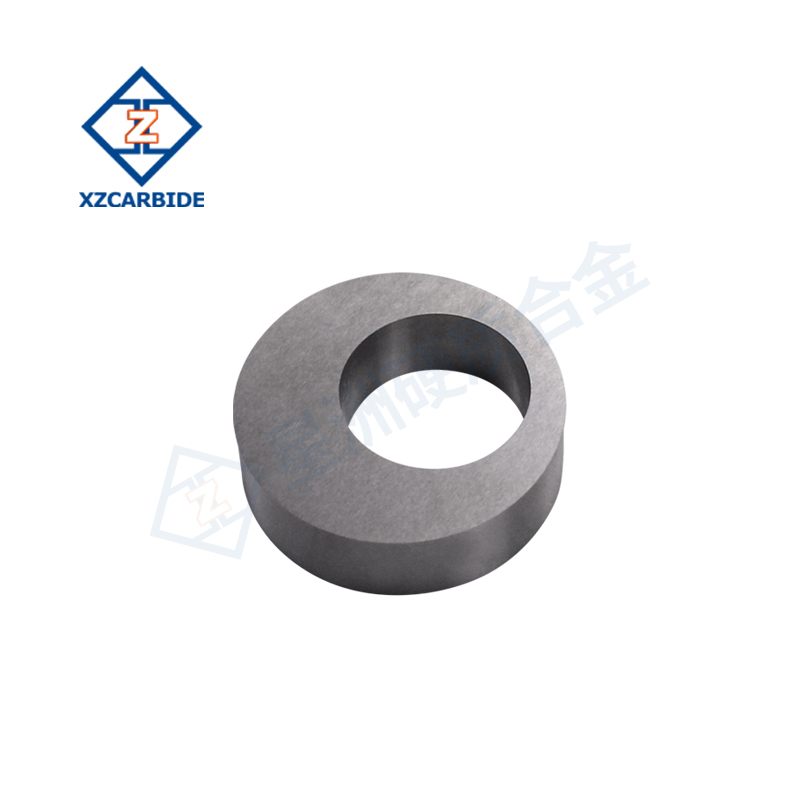

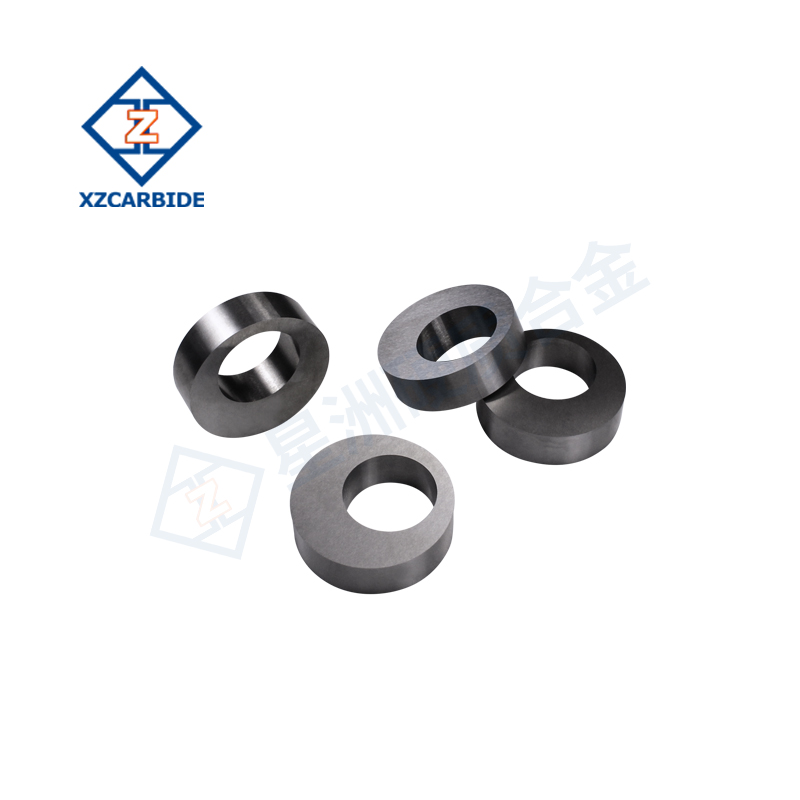

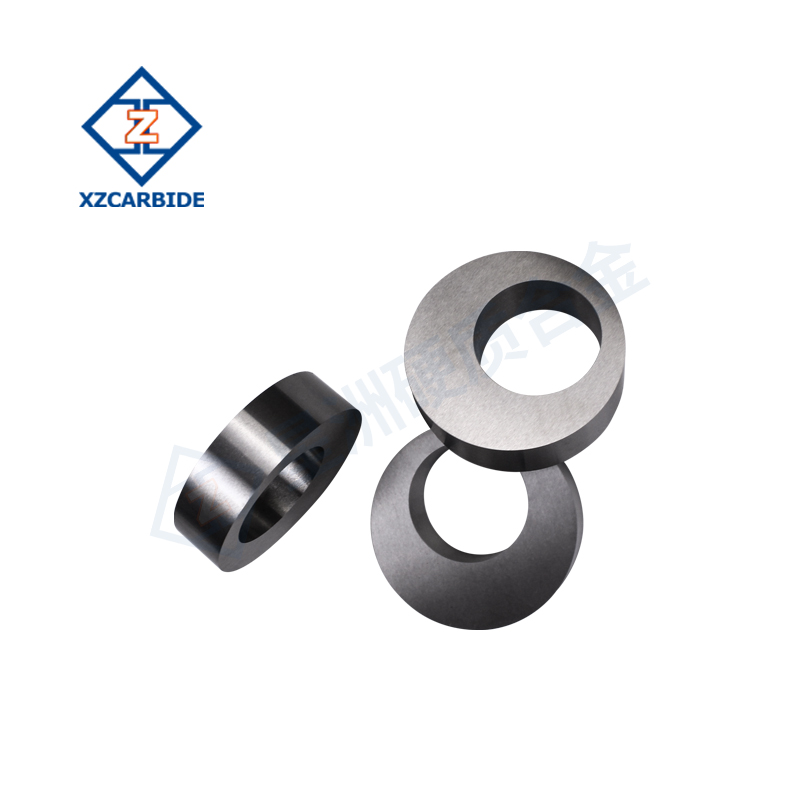

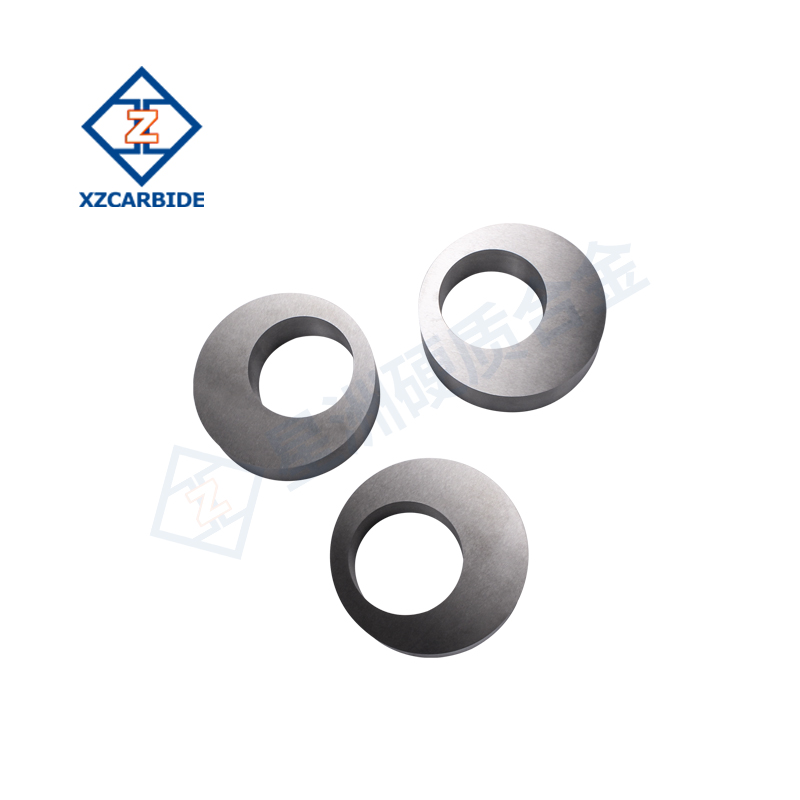

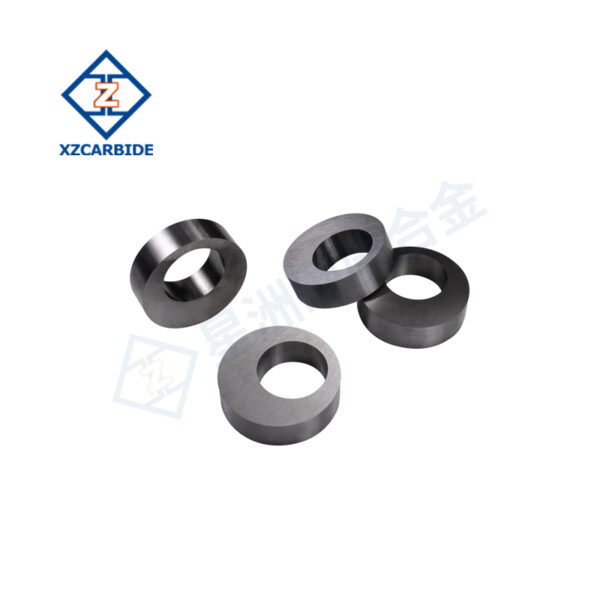

Irregular Shaped Drawing Die

Specially used for manufacturing products with non-standard, complex or irregular geometrical shapes. Widely used in stretch molding of metals and plastics and is suitable for stretching processing of various complex shapes and sizes.

Product Features

  • Customized design: According to customer requirements, design and manufacture molds with specific shapes and sizes to meet the production requirements of different products.
  • High-precision processing: Adopt advanced CNC machine tools and precision grinding process to ensure the high precision and consistency of the molds.
  • Strong durability: Selection of high quality materials to manufacture the molds and special treatment to improve the hardness and abrasion resistance of the molds to prolong the service life.
  • High production efficiency: Irregular shaped drawing die can complete the stretch molding process quickly and accurately, improve production efficiency and reduce production cost.
  • Widely used: Suitable for shaped metal stretching processing in automobile parts, electronic products, aerospace and engineering machinery.

Common Used Grades

Grade

Composition Density

(g/cm3)

Hardness

(HRA)

Flexural Strength

(MPa)

Properties

YG6

94% WC, 6% Co 14.6 89

1520

High hardness and good wear resistance , suitable for general wear and impact applications.

YG8

92% WC, 8% Co 14.5 88.5

1600

High hardness with impact resistance , suitable for medium impact and wear conditions.

YG15

85% WC, 15% Co 14.0 86

2400

High flexural strength and impact toughness , ideal for high impact and wear environments.

YNi8

92% WC, 8% Ni 14.7 88.5

1500

Good corrosion resistance and toughness , suitable for chemical and corrosive media environments.

YG20

80% WC, 20% Co 14.0 84

2800

Extremely high flexural strength and toughness , ideal for high impact and high wear environments.

Customized Services

We provide customized irregular shaped drawing die solutions based on customer needs. Whether customizing a single piece or producing large quantities, we can provide you with an efficient and reliable tooling solution. Please contact us for more details and customization options.
