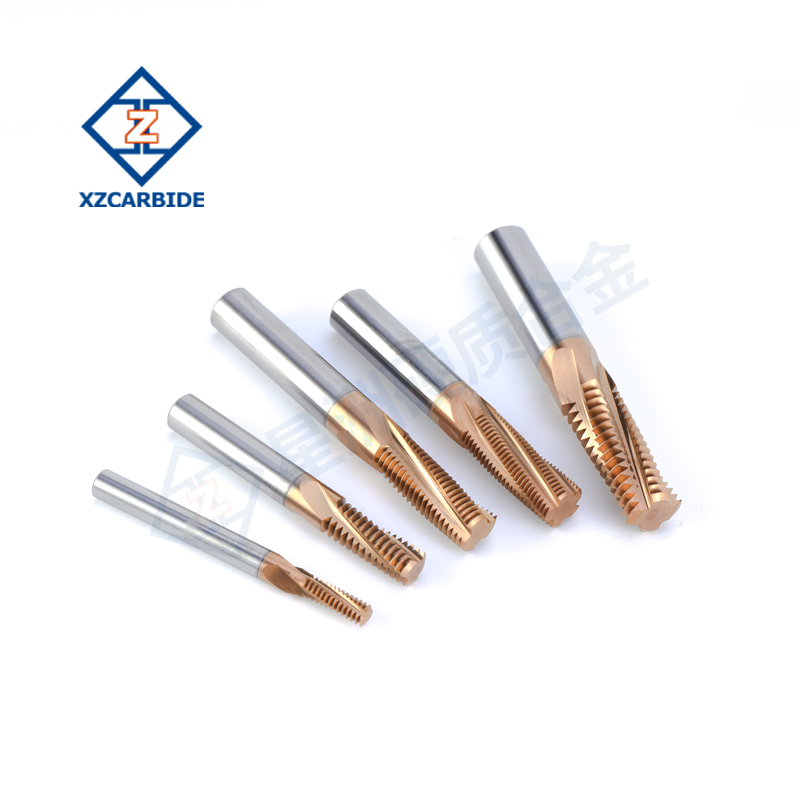

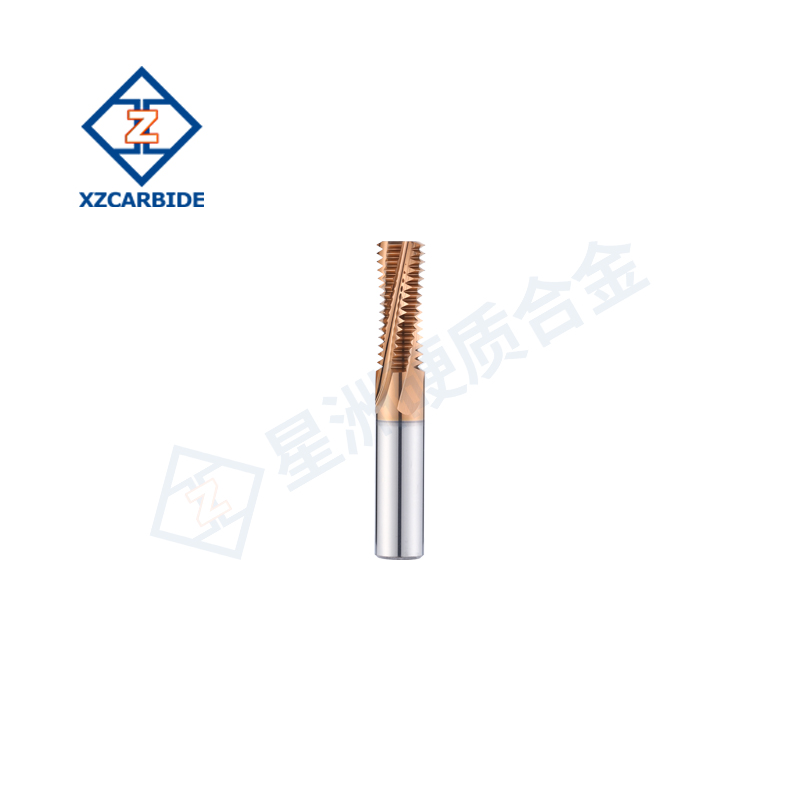

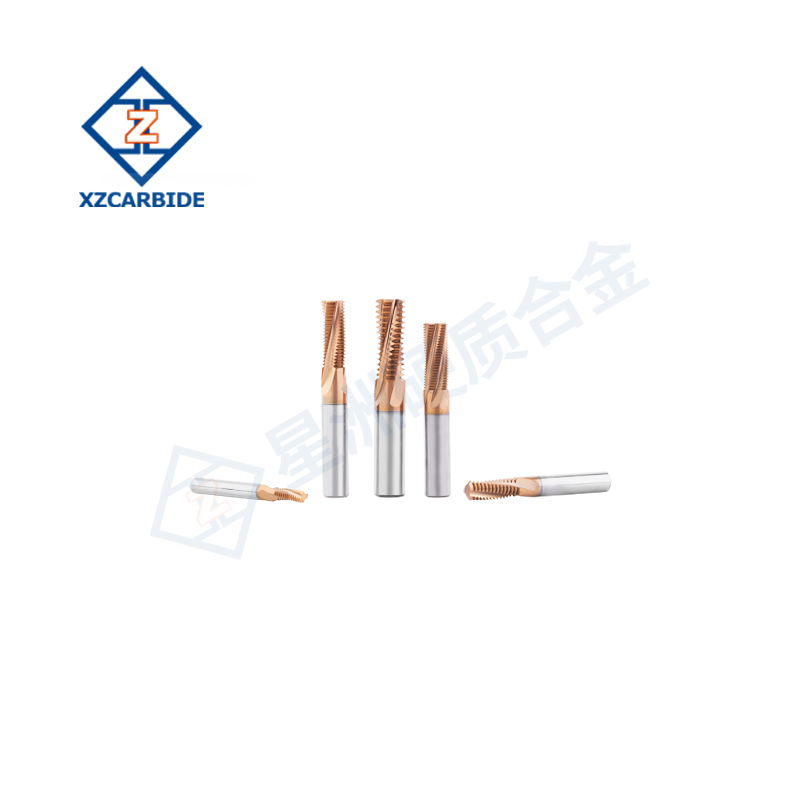

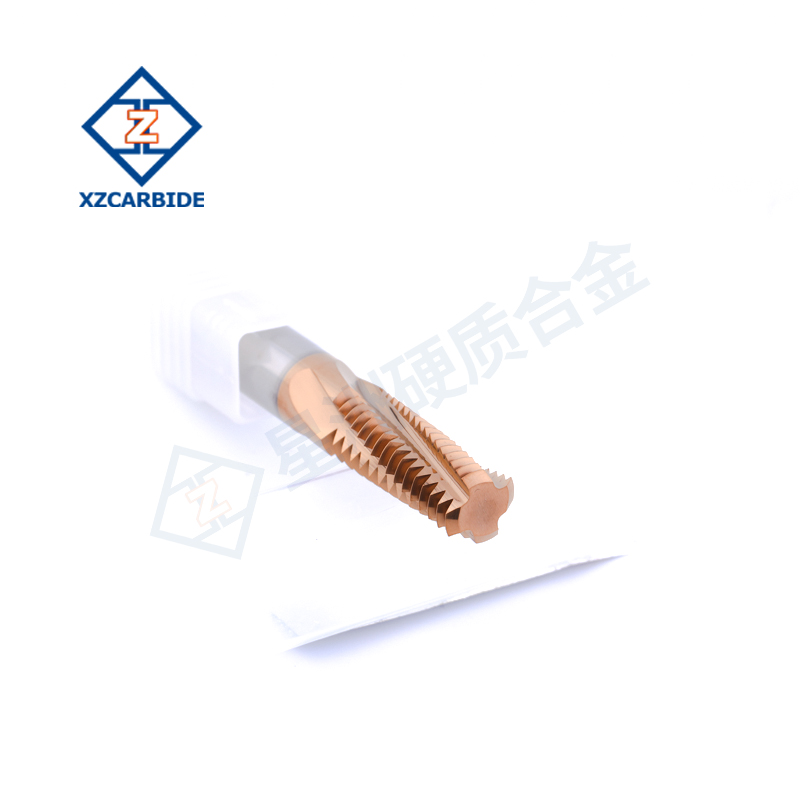

Fresa de extremo de rosca de dientes completos

Product Features

Full-tooth cutting, high efficiency and precision

• The cutting edge covers the entire circumference, and the full-tooth cutting greatly improves the processing efficiency.
• Precise control of the cutting path ensures accurate thread size and smooth surface.

High quality material, durable and reliable

• High-quality cemented carbide is used as the base material, which has excellent wear resistance and impact resistance.
• High-performance coatings (e.g. TiALN) are applied to the tool surface to enhance cutting performance and extend service life.

Stable machining, reduced vibration

• The full-tooth design helps maintain tool stability during machining, reducing vibration and deviation.
• Suitable for machining various materials, including but not limited to stainless steel, alloy steel, aluminum alloy, and more.

Flexible application, widely compatible

• Suitable for a variety of CNC machines and machining centers to meet different machining needs.
• Available to process different specifications of threads, including internal and external threads, to meet diversified processing requirements.

Product Parameters

Standard Type

Blade Diameter	Blade Length	Shank
6.0	6	15
8.0	8	20
10.0	10	25
12.0	12	30
14.0	14	45
16.0	16	45
18.0	18	45
20.0	20	45

Support Customize

Common Used Grades

Calificación	Dureza (HRC)	Tamaño de grano (μm)	Bending Strength (N/mm2)
YG10X	45	0.7	3320
YL10.2&WF25	55	0.6	4000

Coating

Type	Dureza (HV)	Thickness (μm)	Oxidation Temp. (℃)	Friction Coefficient	Color	Merits
AlTin	3300	2.5-3	900	0.35	Black	High heat stability. Suitable for high speed, dry cutting. Most suitable for carbide cutting tools, turning insert.
TiAlN	2800	2.5-3	800	0.3	Dark purple	Good thermal hardness. Excellent oxidation resistance. Good adhesion and resistance to bonding.
TiSiN	4300	3	1000	0.25	Copper	Suitable for heavy cutting, and high hardness cutting. Suitable for cutting mould steel, stainless steel.
Naco	42(GPA)	3	1200	0.4	Blue	For high precision cutting. Suitable for high hardness cutting, mould steel processing.
