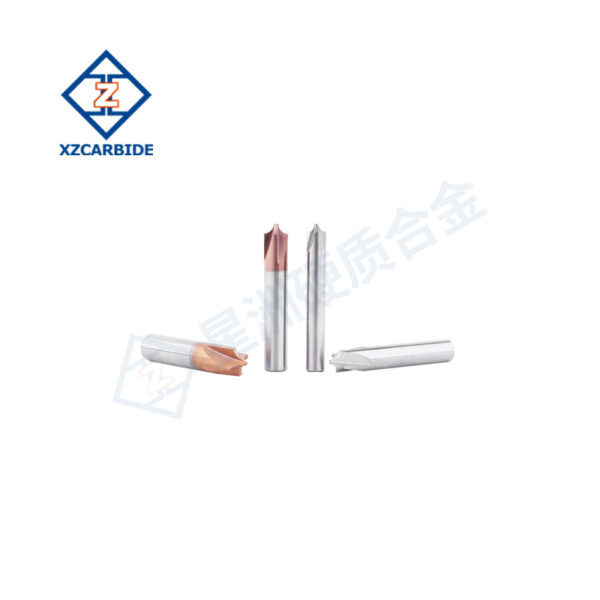

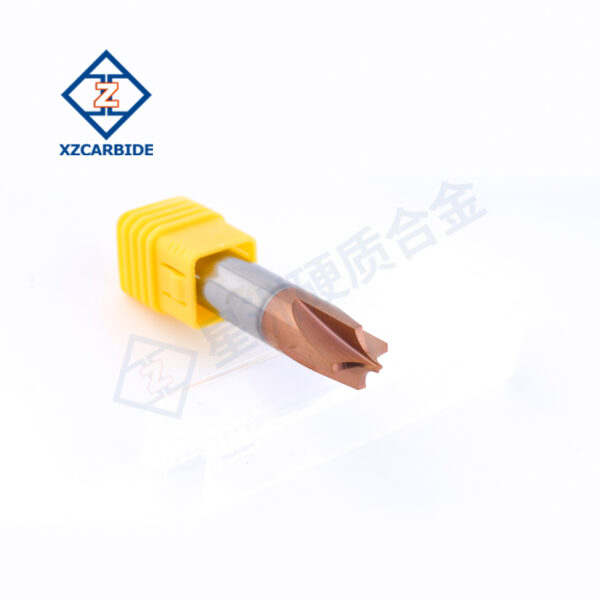

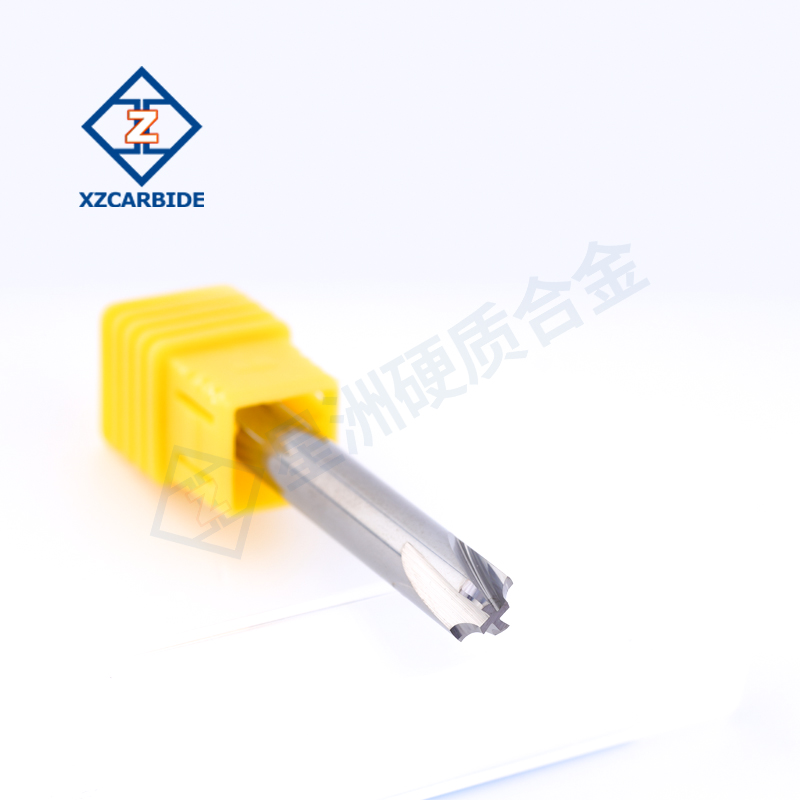

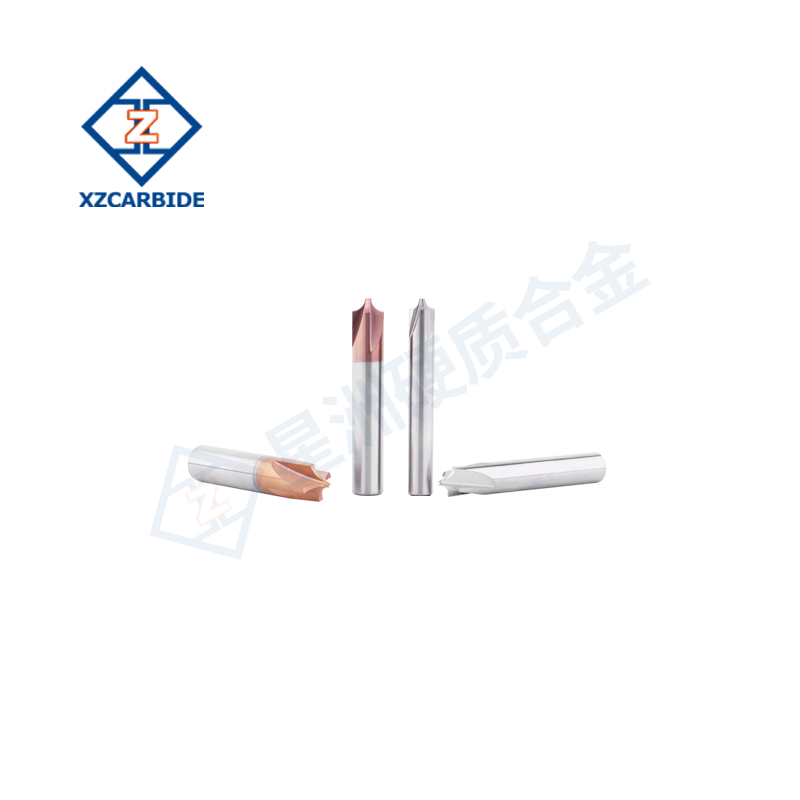

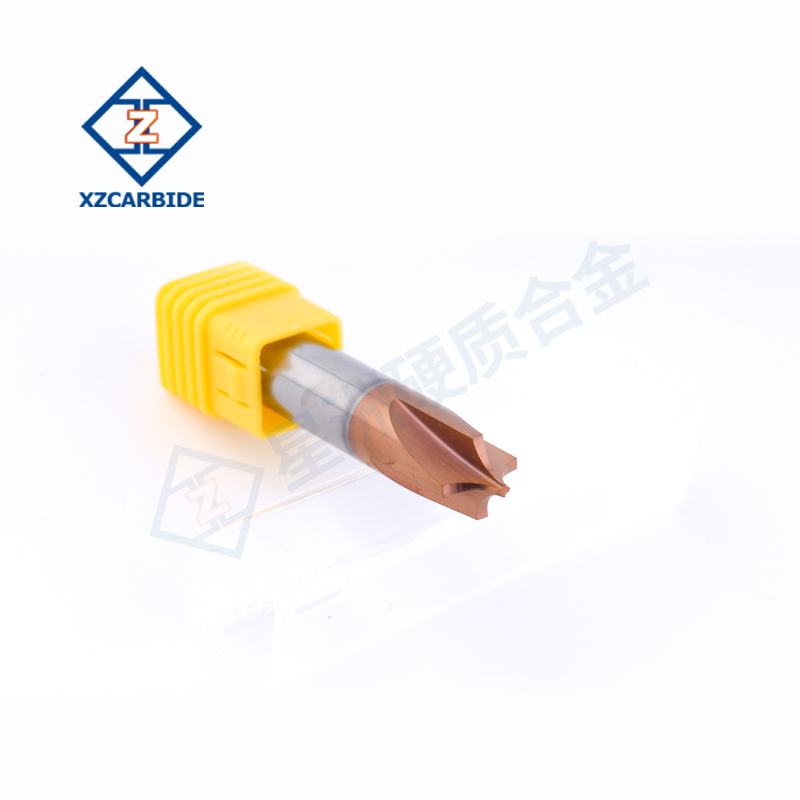

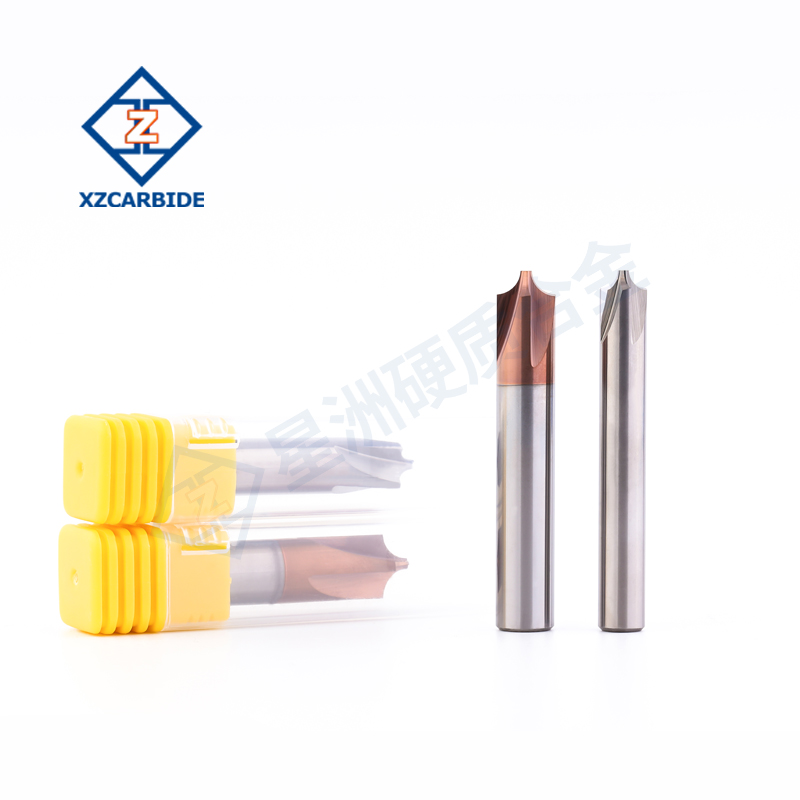

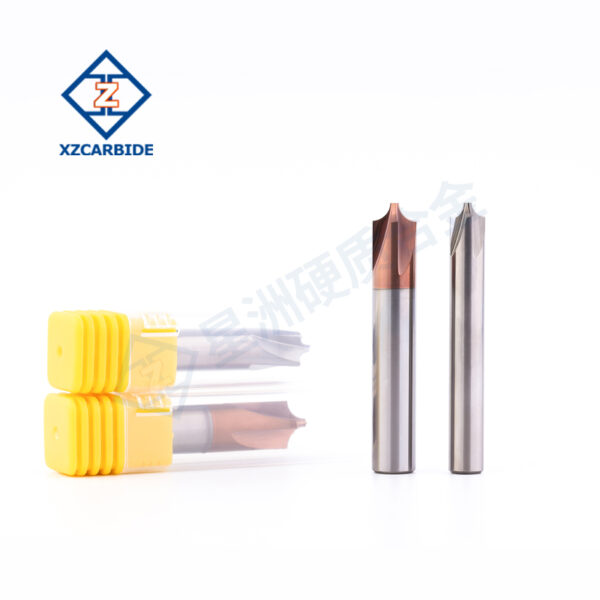

Product Features
- Precise machining: The special cutting edge design can accurately machine the required fillet radius to ensure machining accuracy.
- Efficient cutting: Optimized number of teeth and helix angle design improves cutting efficiency and reduces machining time.
- Strong durability: Selection of high-quality materials and precision machining to ensure tool durability and reduce the number of tool changes.
- Widely used: Suitable for machining different kinds of materials, including metals, plastics, composites, etc. Widely used in molds, aerospace, automotive manufacturing and other fields.
Product Information
| Diameter | Φ6mm, Φ8mm, Φ10mm and more |
| Fillet Radius | R0.5, R1, R2 and more |
| Number of Blades | Usually 2 or 4 blades |
| Helix Angle | Designed based on cutting needs, affecting chip removal and cutting forces. |
| Coating | Available with uncoated, TiAlN coatings, and other options to improve tool performance and life. |
Product Parameters
| Fillet Radius | Blade Diameter | Blade
Length |
Shank Diameter | Overall Length | Number of Blades |
| R0.5 | 4 | 3 | 4 | 50 | 2/4 |
| R1.0 | 4 | 2 | 4 | 50 | 2/4 |
| R1.5 | 6 | 3 | 6 | 50 | 2/4 |
| R2.0 | 6 | 2 | 6 | 50 | 2/4 |
| R2.5 | 8 | 3 | 8 | 50 | 2/4 |
| R3.0 | 8 | 2 | 8 | 60 | 2/4 |
| R4.0 | 10 | 2 | 10 | 60 | 2/4 |
| R5.0 | 12 | 2 | 12 | 75 | 2/4 |
| R6.0 | 14 | 2 | 14 | 75 | 2/4 |
Application Areas
- Graphite machining: Particularly suitable for efficient machining of graphite, providing long life and high cutting performance.
- Mold manufacturing: Used for internal hole machining of high-precision molds.
- Machining: For internal milling and contouring of mechanical parts.
