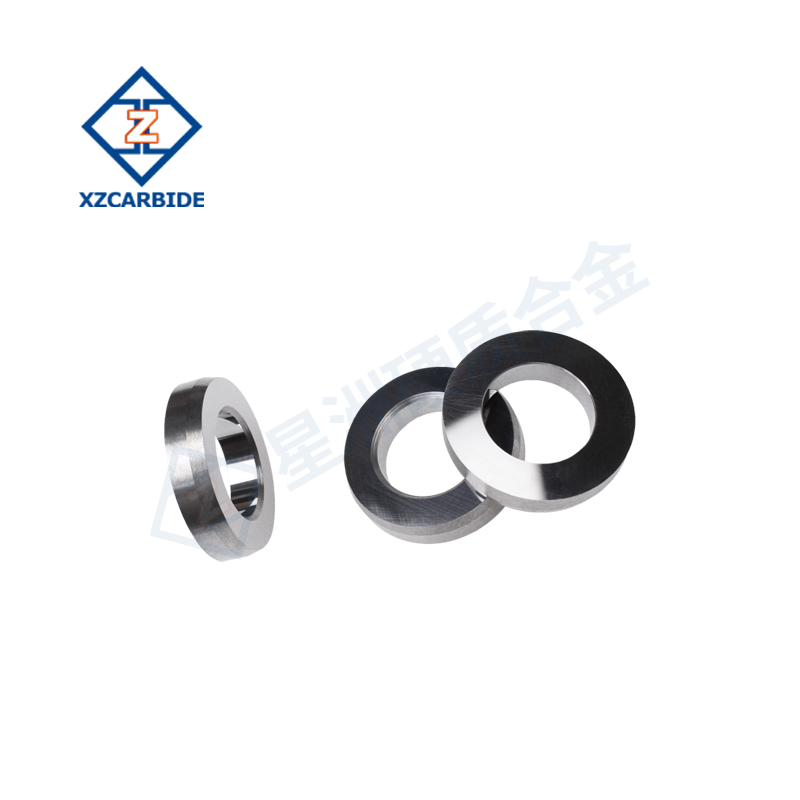

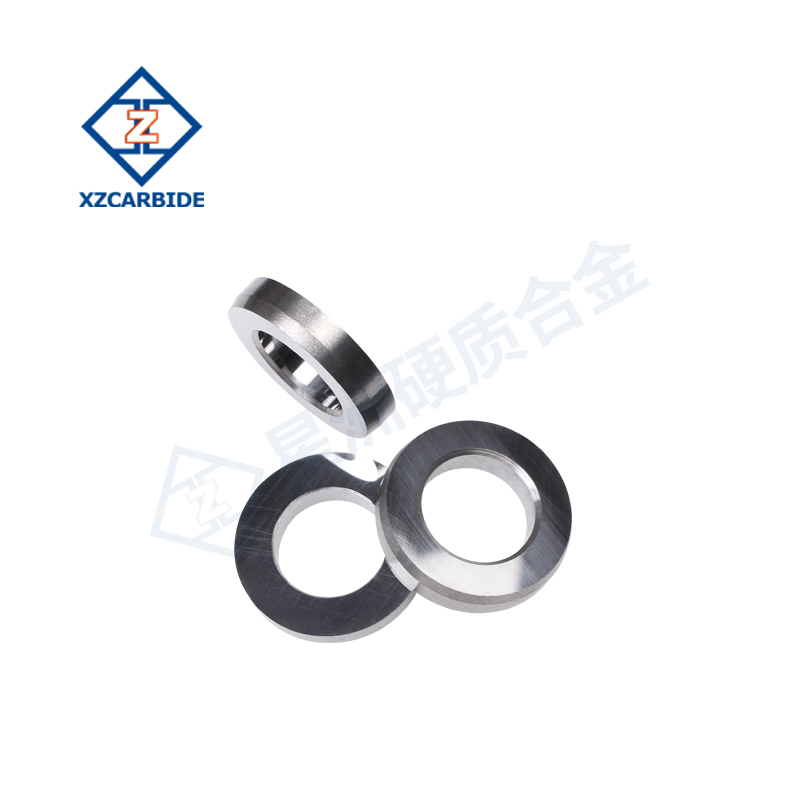

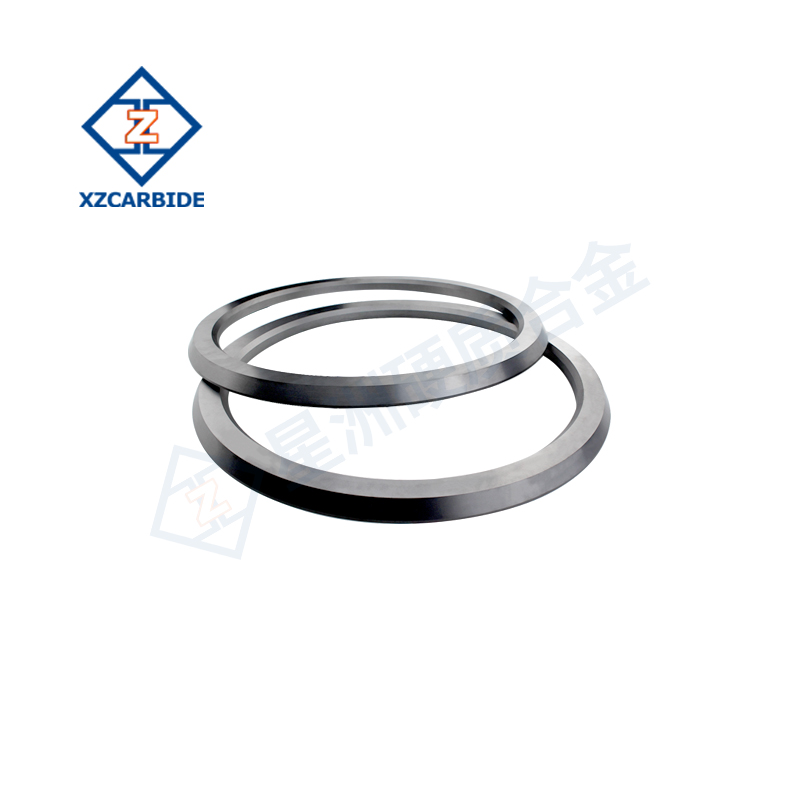

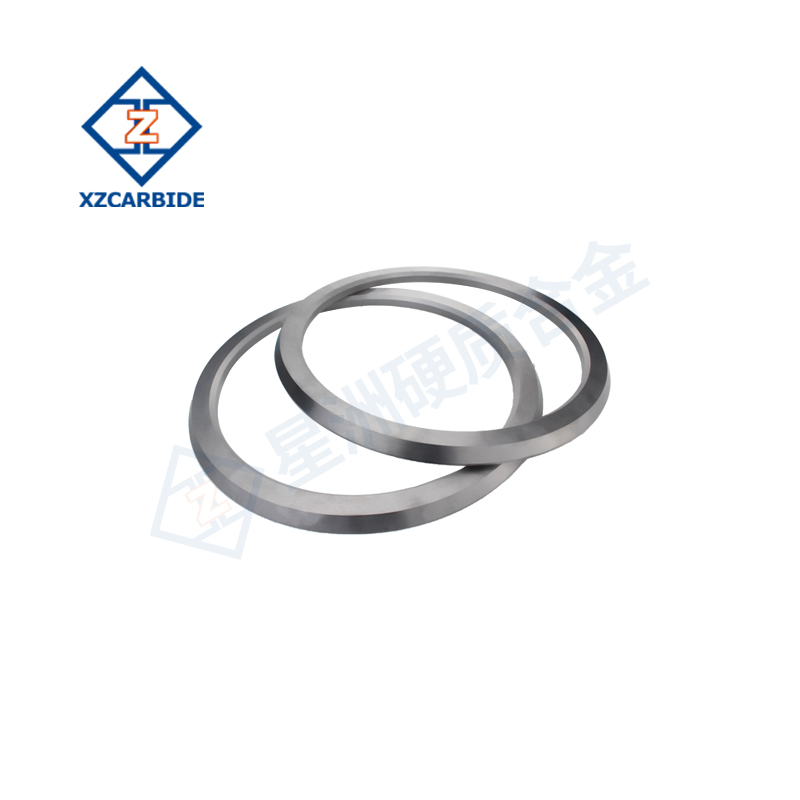

Carbide Seal Ring

Carbide seal rings play a key role in modern industry and are widely used in petroleum, chemical, pharmaceutical and automotive fields. Their main function is to prevent fluid leakage and maintain system pressure and stability.

ENQUIRY!

Beschreibung
Bewertungen (0)

Product Parameters

Basic Dimension

Outside Diameter

(mm)

Inside Diameter

(mm)

Height

(mm)

10~750

2~400

1.5~300

The exact dimensions are based on the drawings.

Common Used Grades

Grade	Composition	Hardness (HRA)	Flexural Strength (MPa)	Properties
YG6	94% WC, 6% Co	89	1520	High hardness and good wear resistance , suitable for general wear and impact applications.
YG8	92% WC, 8% Co	88.5	1600	High hardness with impact resistance , suitable for medium impact and wear conditions.
YG15	85% WC, 15% Co	86	2400	High flexural strength and impact toughness , ideal for high impact and wear environments.
YNi8	92% WC, 8% Ni	88.5	1500	Good corrosion resistance and toughness , suitable for chemical and corrosive media environments.
YG20	80% WC, 20% Co	84	2800	Extremely high flexural strength and toughness , ideal for high impact and high wear environments.
