Product Overview

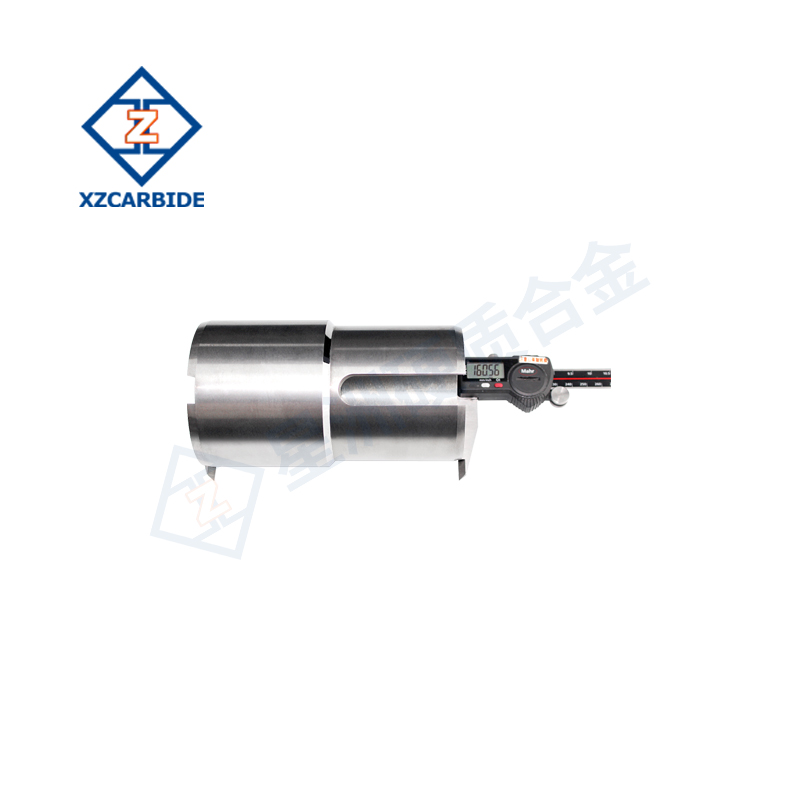

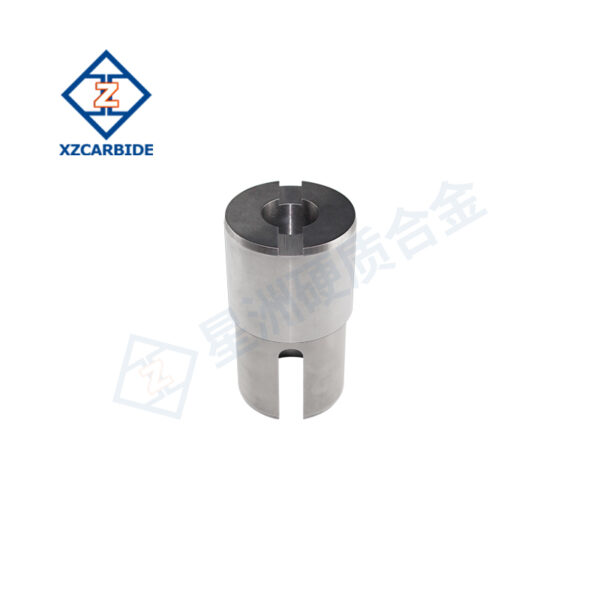

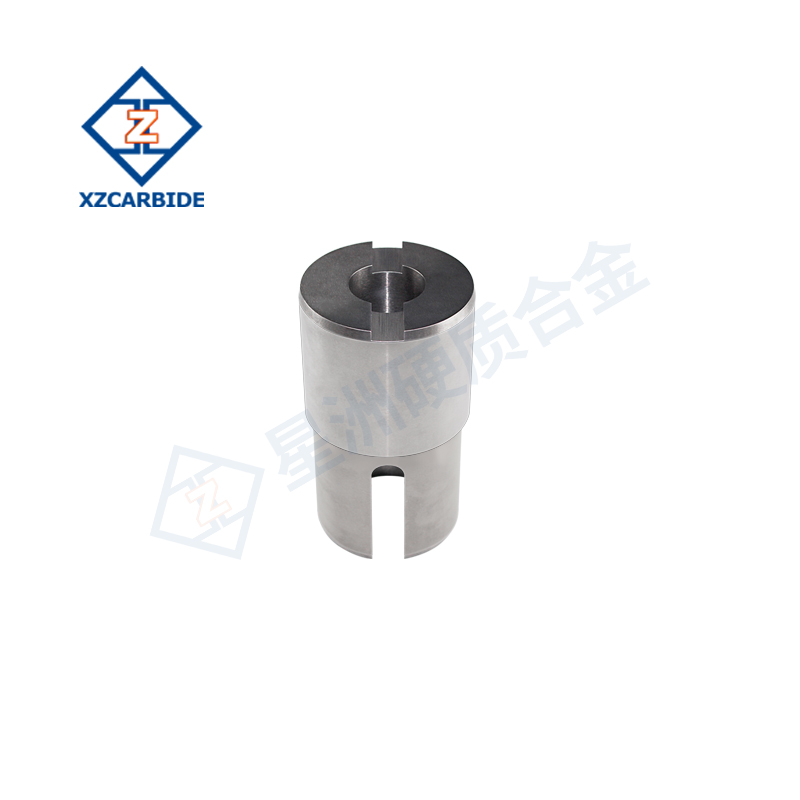

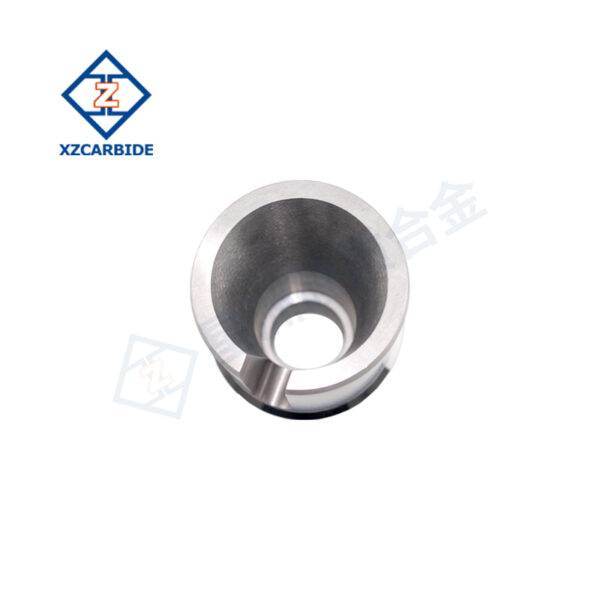

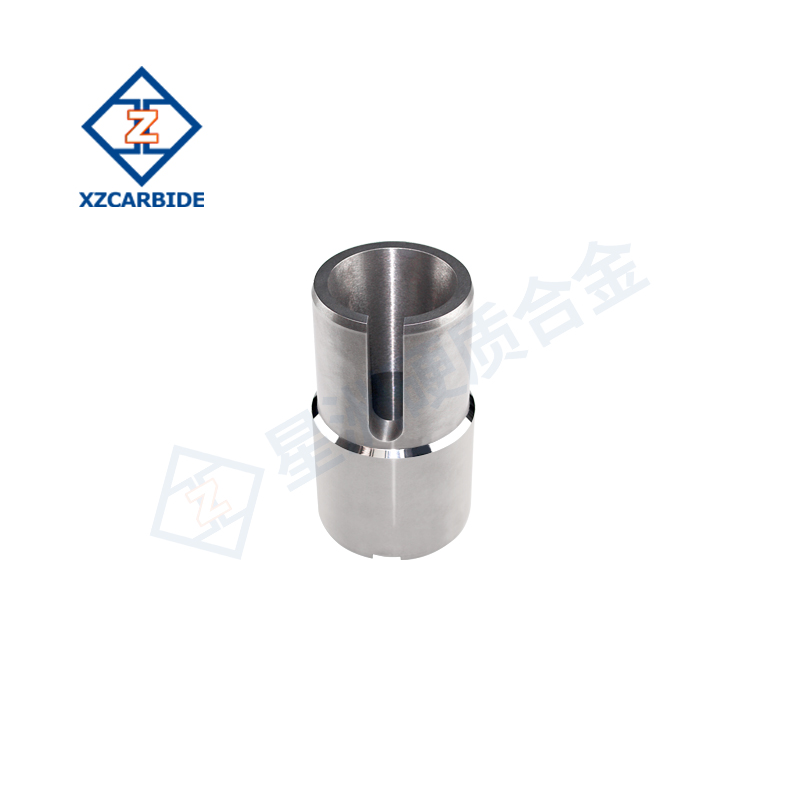

Carbide bushings are high-performance industrial components known for their excellent wear resistance, high hardness, high-temperature resistance, and corrosion resistance. They are widely used in mechanical manufacturing, petrochemical, aerospace, and other fields. Our carbide bushings are made from high-quality carbide materials and are precisely processed to ensure product quality and performance.
Product Parameters
| Materials | Tungsten carbide |
| Hardness | HRA 90-94 |
| Density | 13.8-14.9 g/cm³ |
| Dimensions | Inside diameter: 10-100 mm
Outside diameter: 20-150 mm Length: 10-200 mm Upon request |
| Working Temperature | From room temperature to 500℃ |
| Working Pressure | 8000 PSI max. |
| Bending Strength | ≥1200 MPa |
| Coefficient of Thermal Expansion(CTE) | 6.5×10⁻⁶/℃ |
| Corrosion Resistance | Suitable for multiple corrosive media, including acids, alkalis and salt solutions. |
